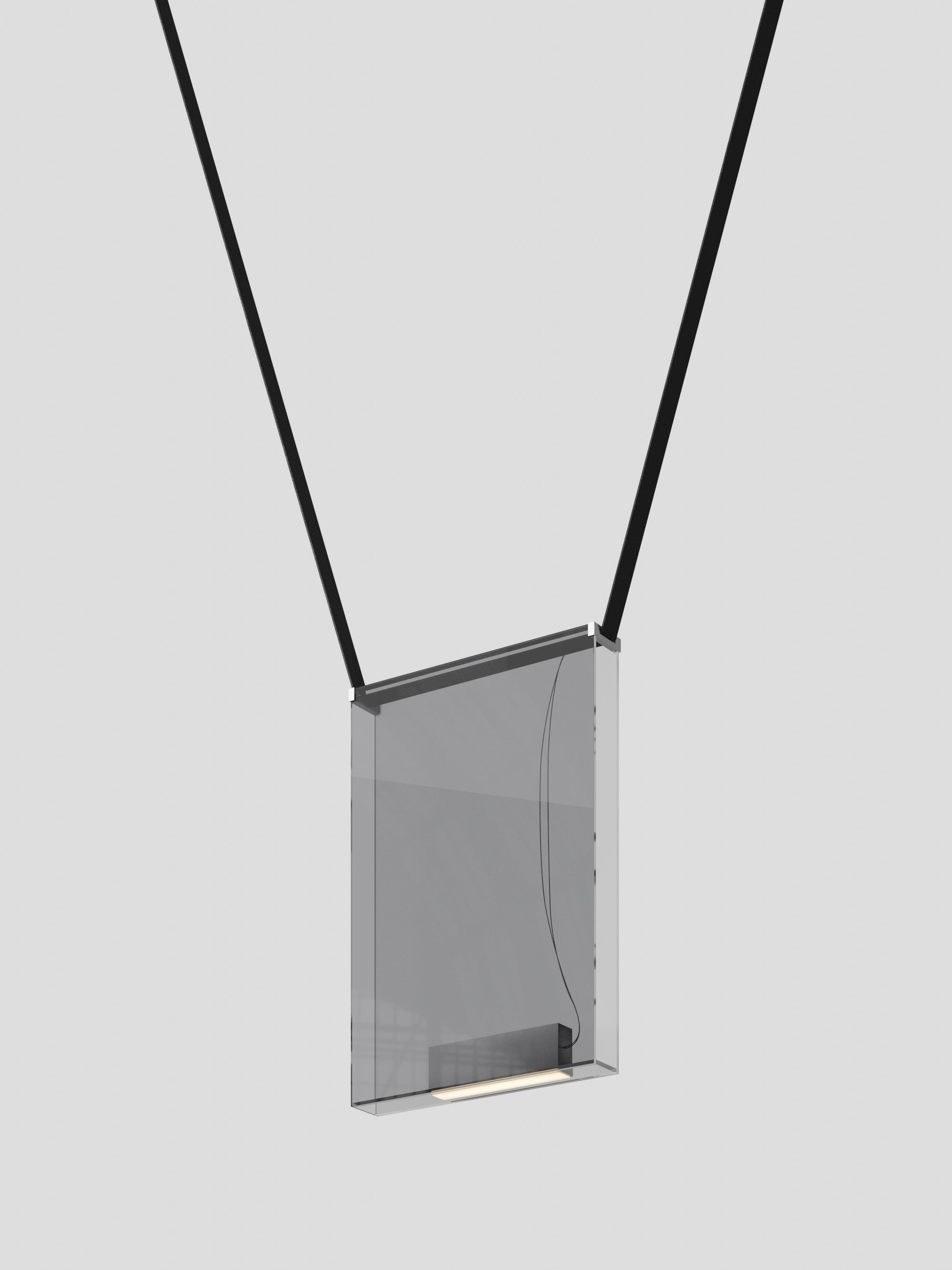

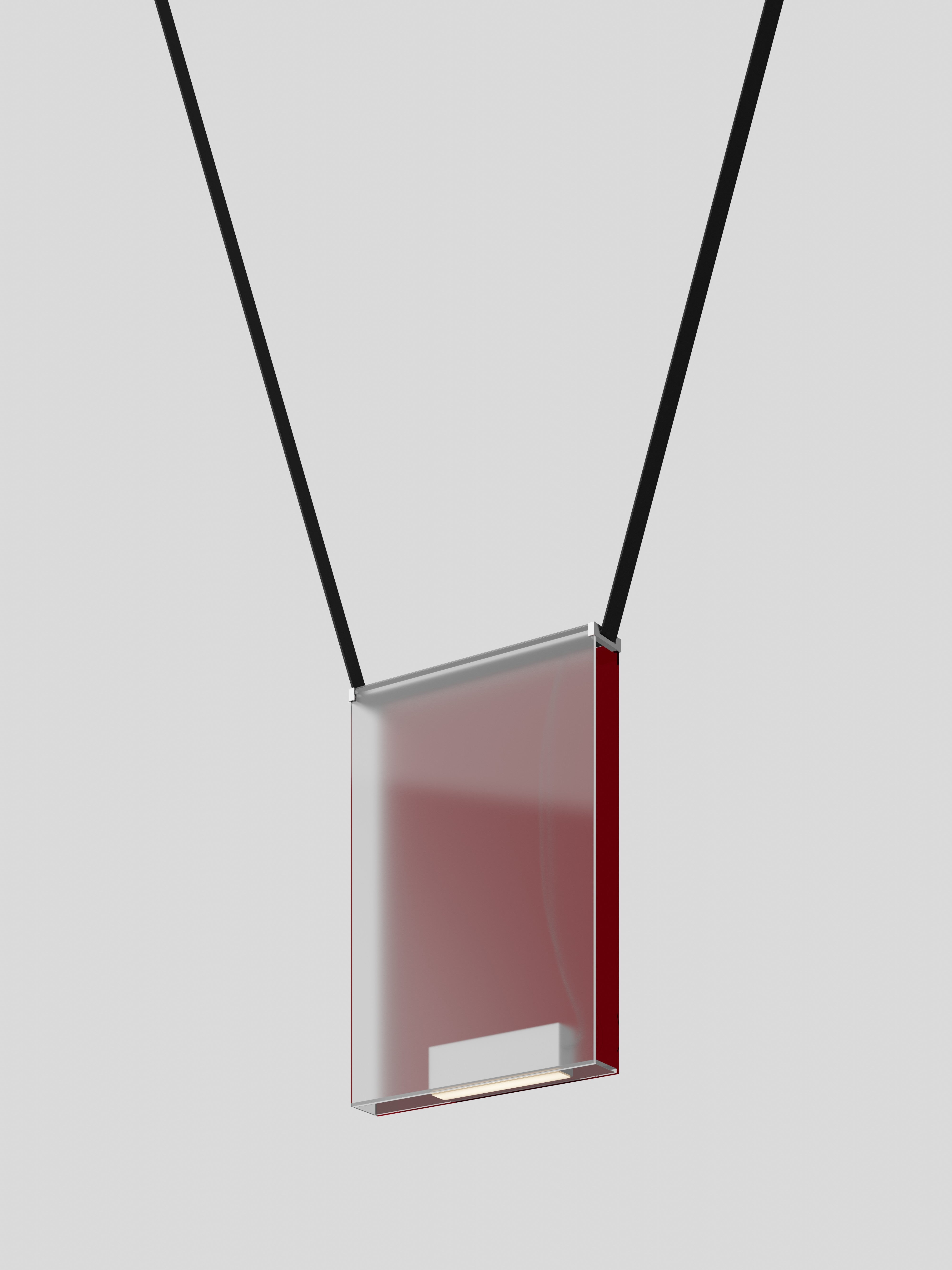

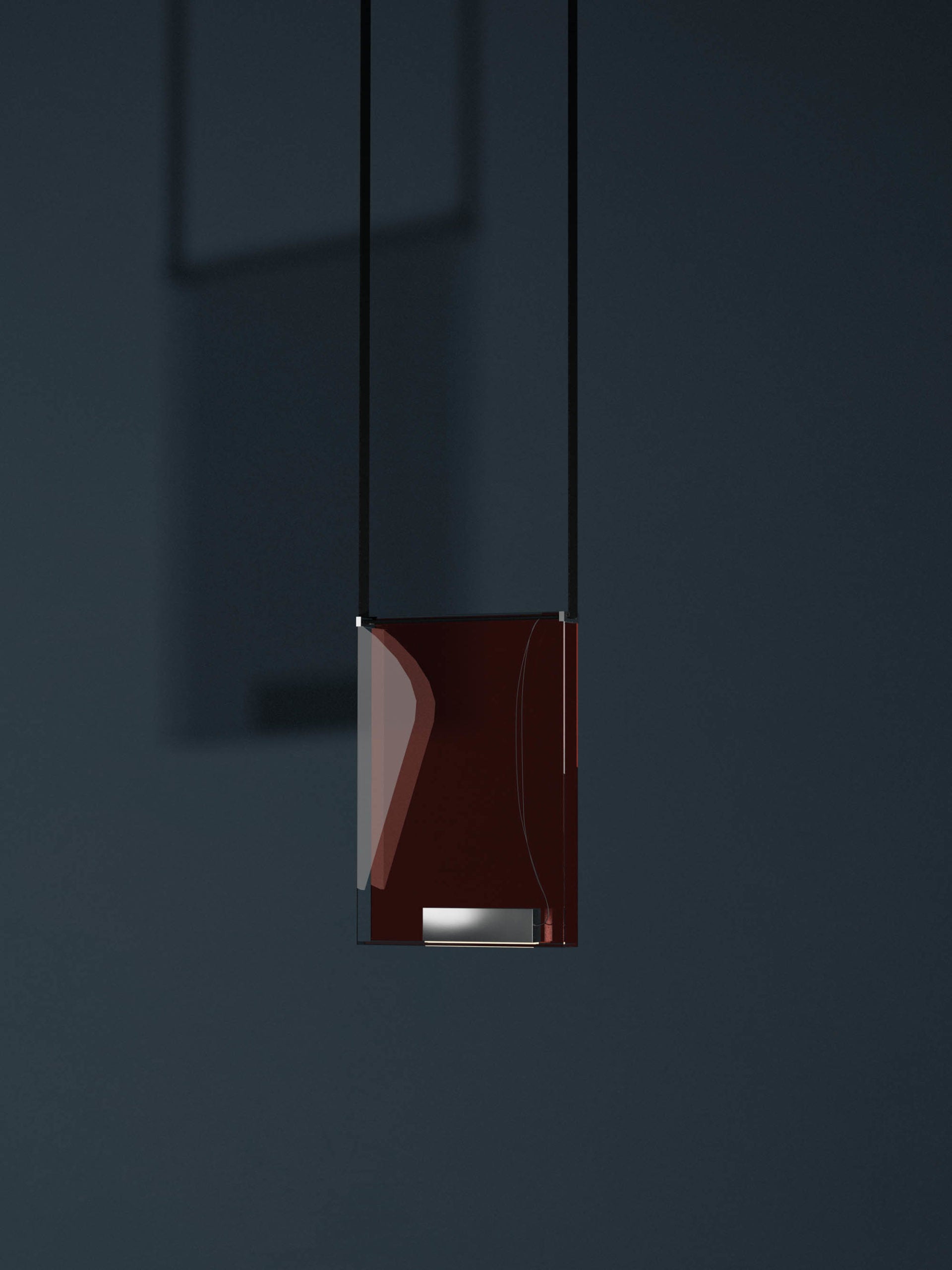

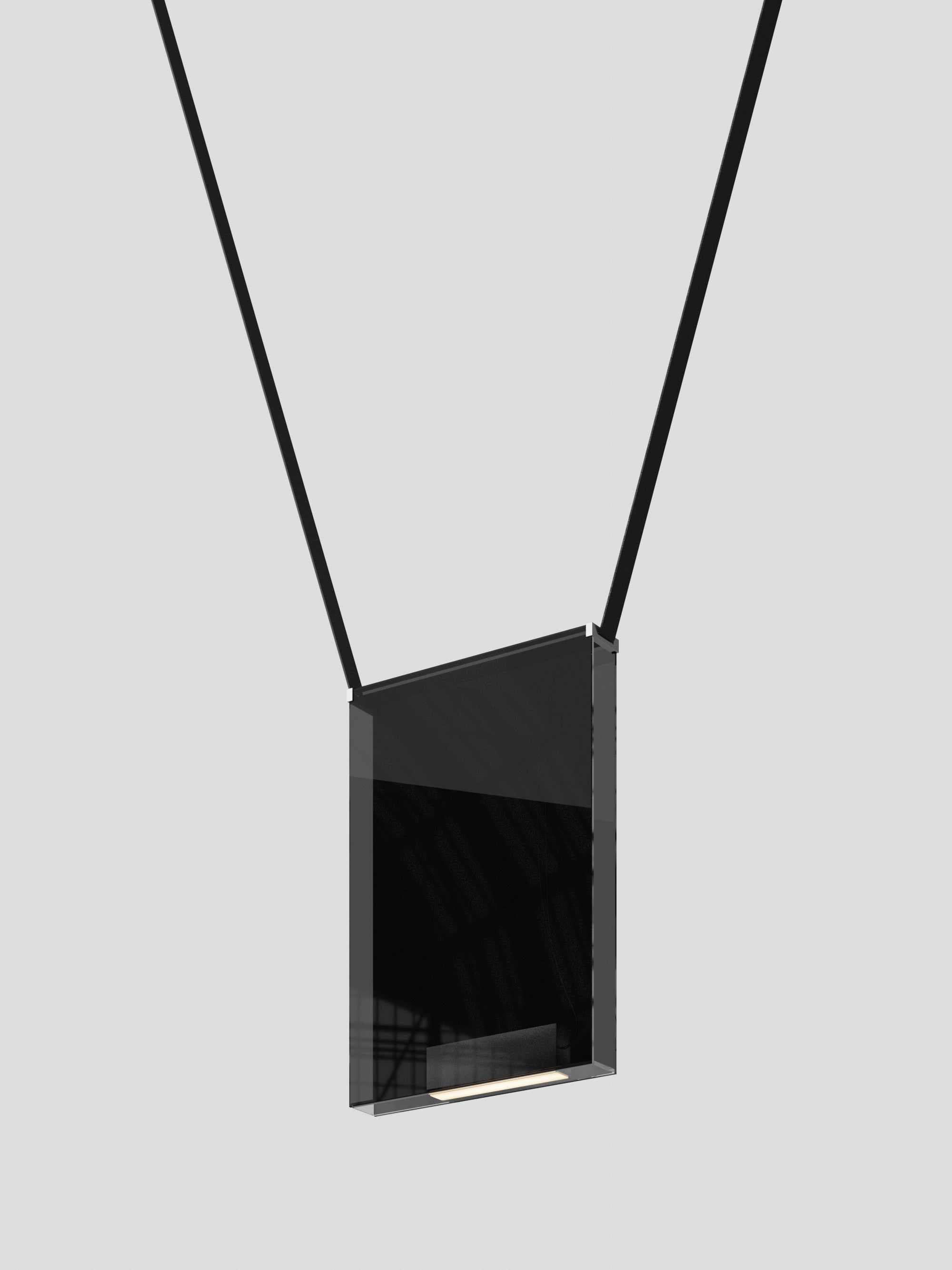

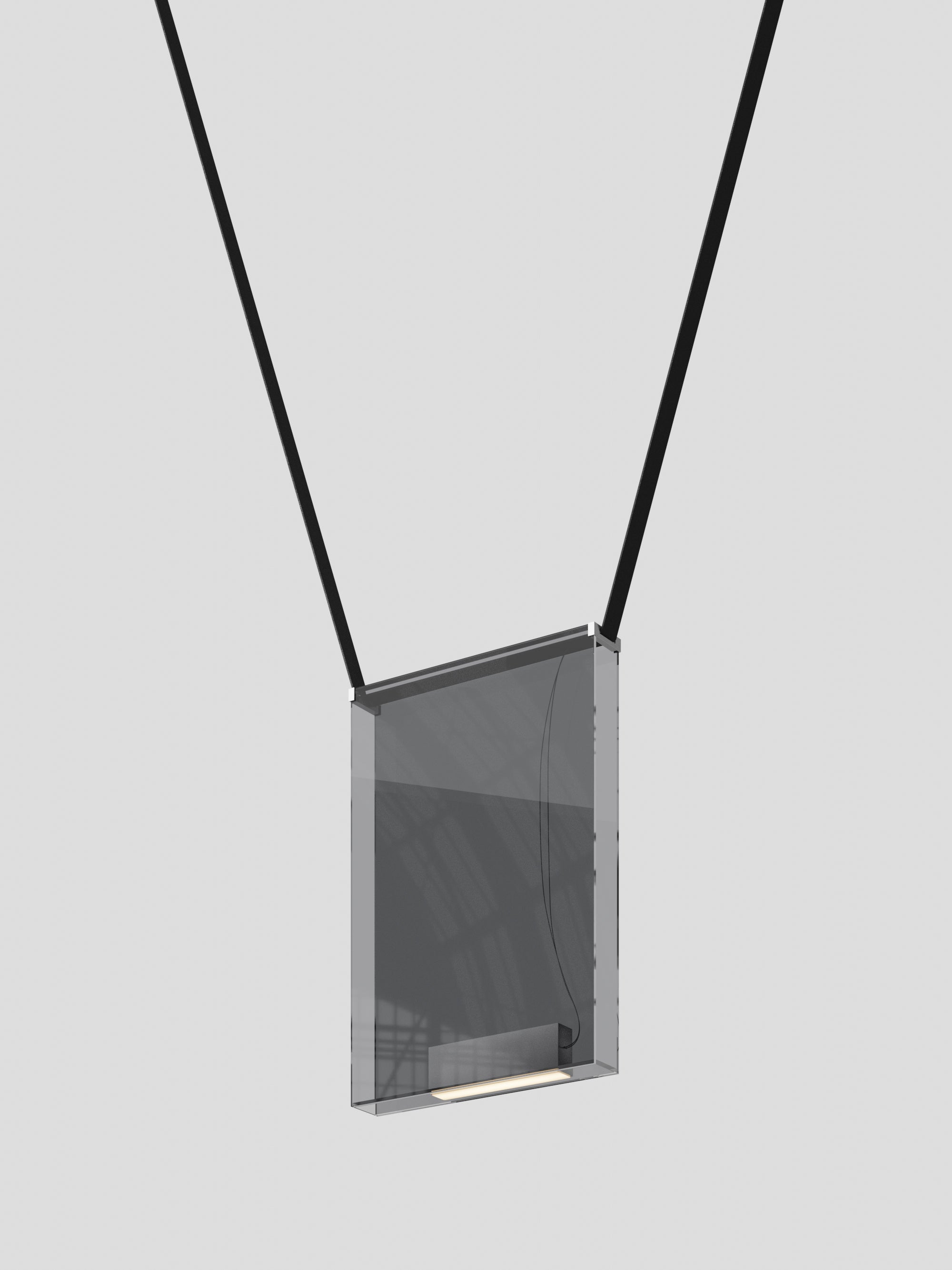

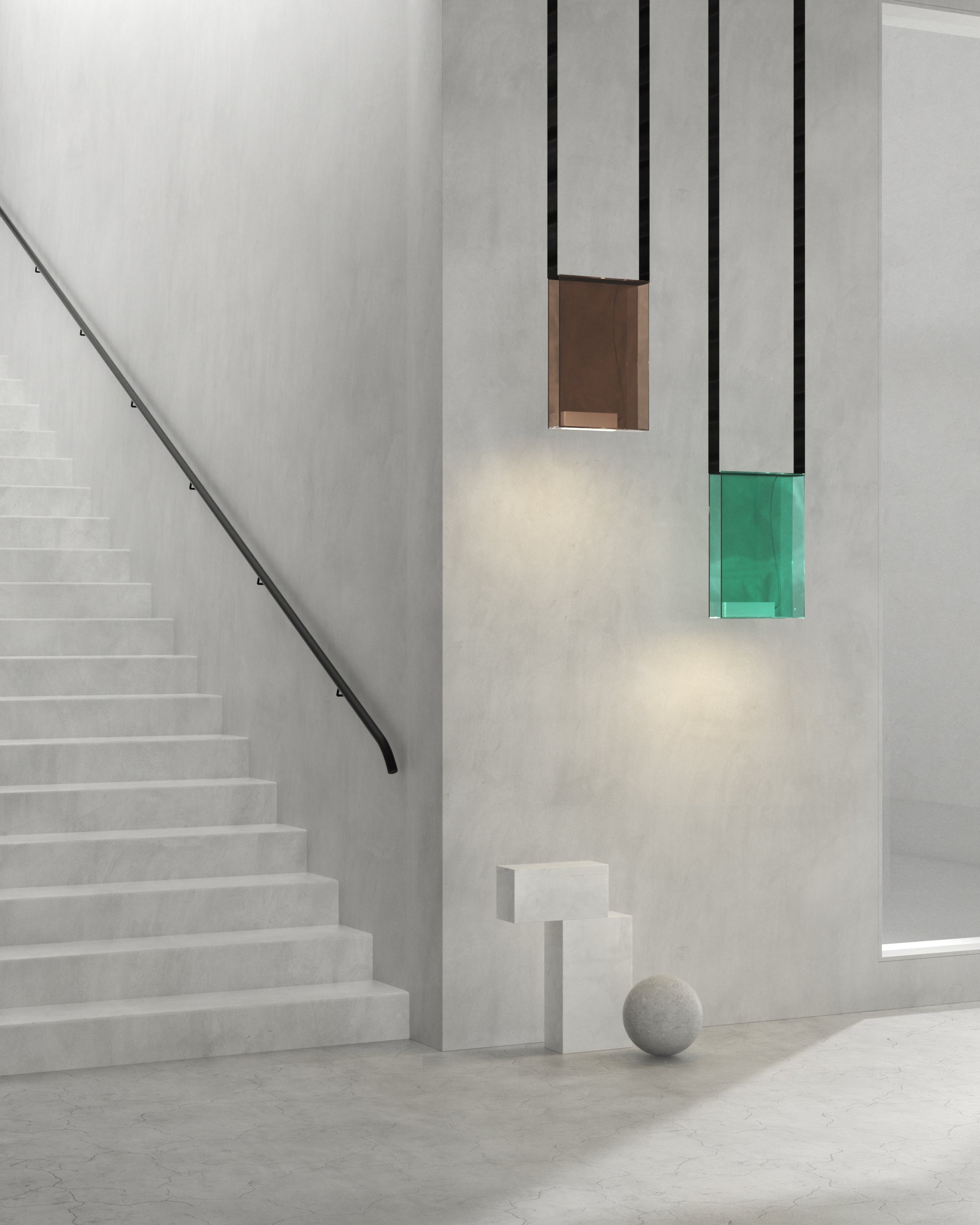

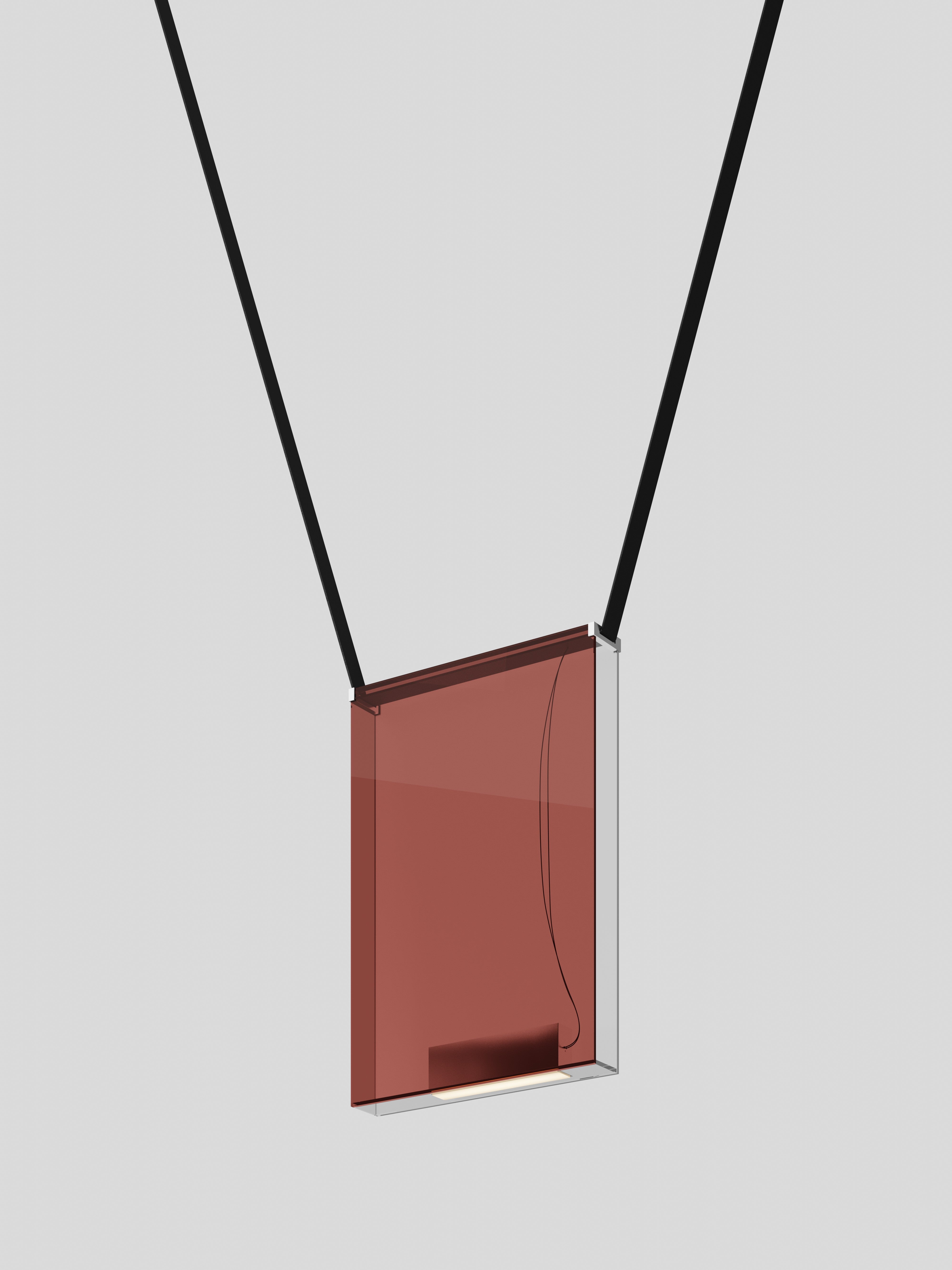

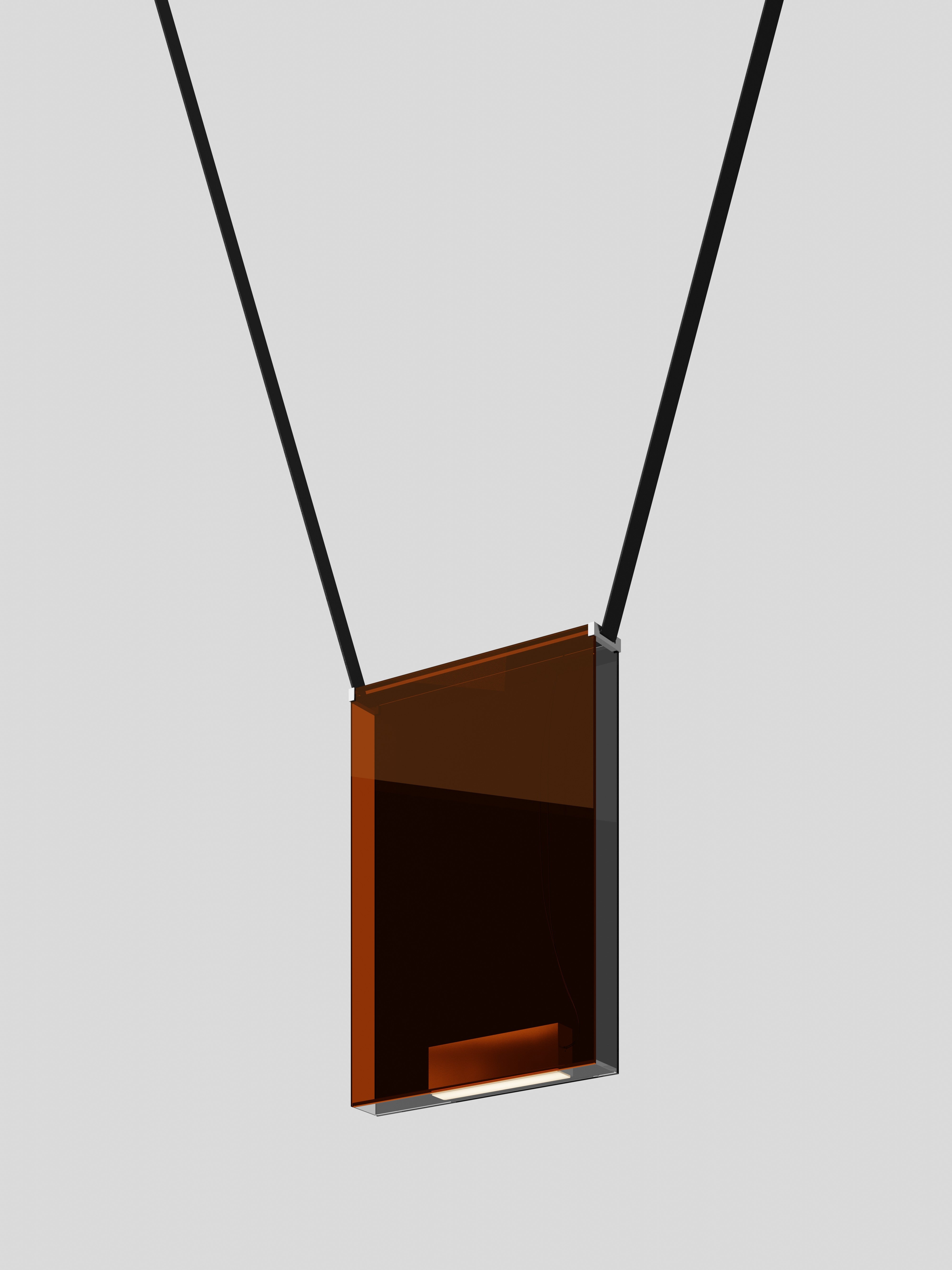

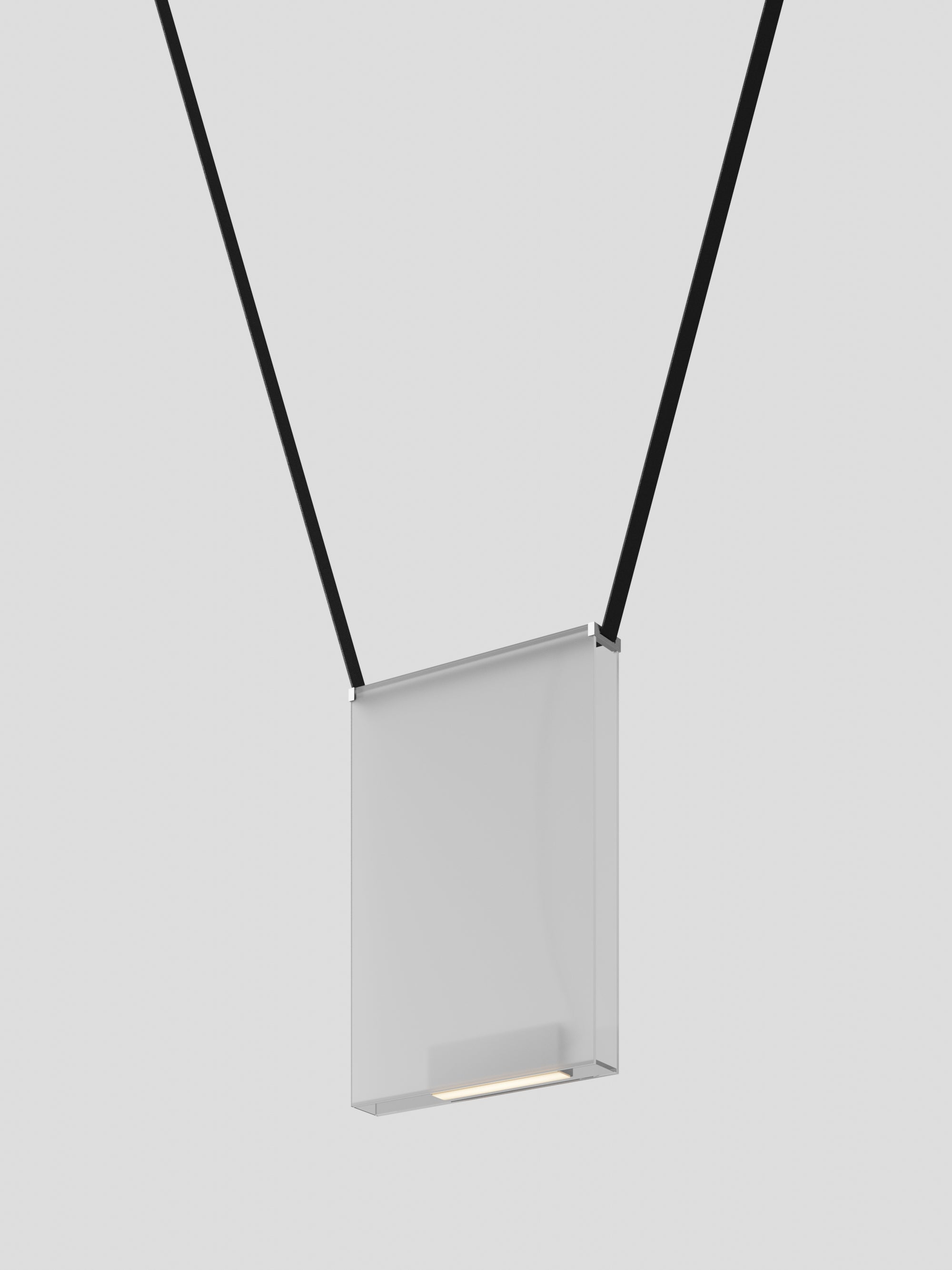

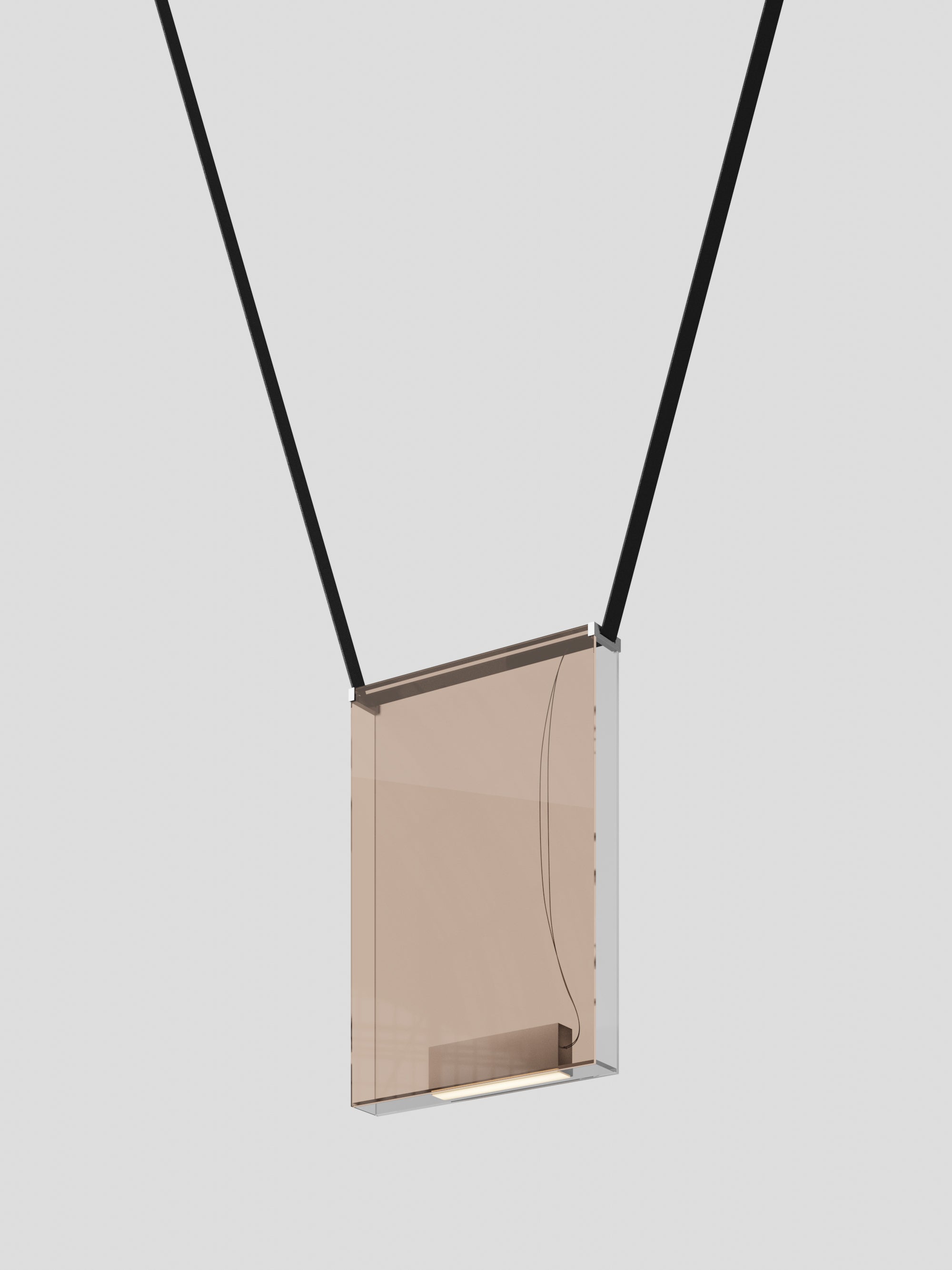

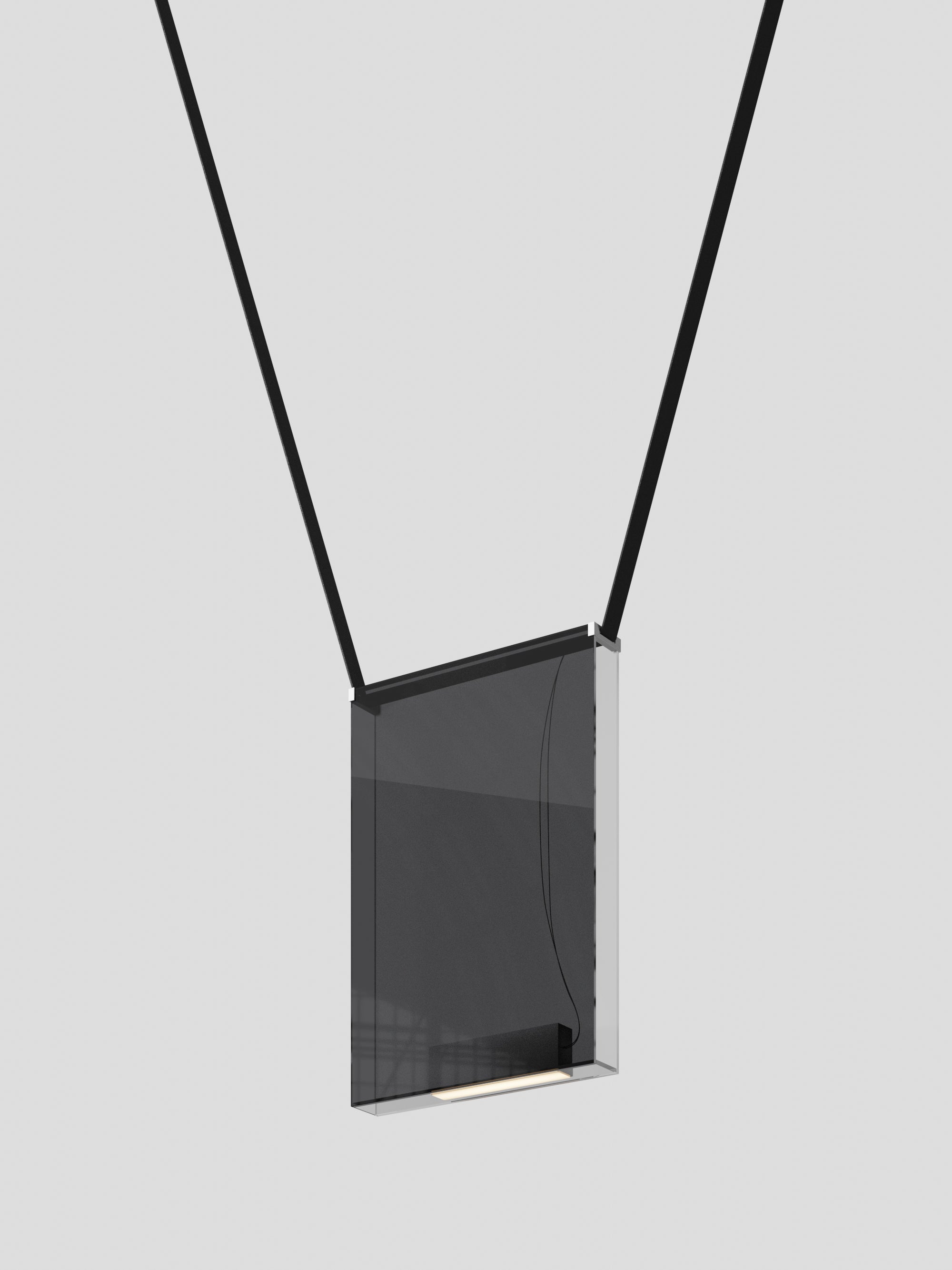

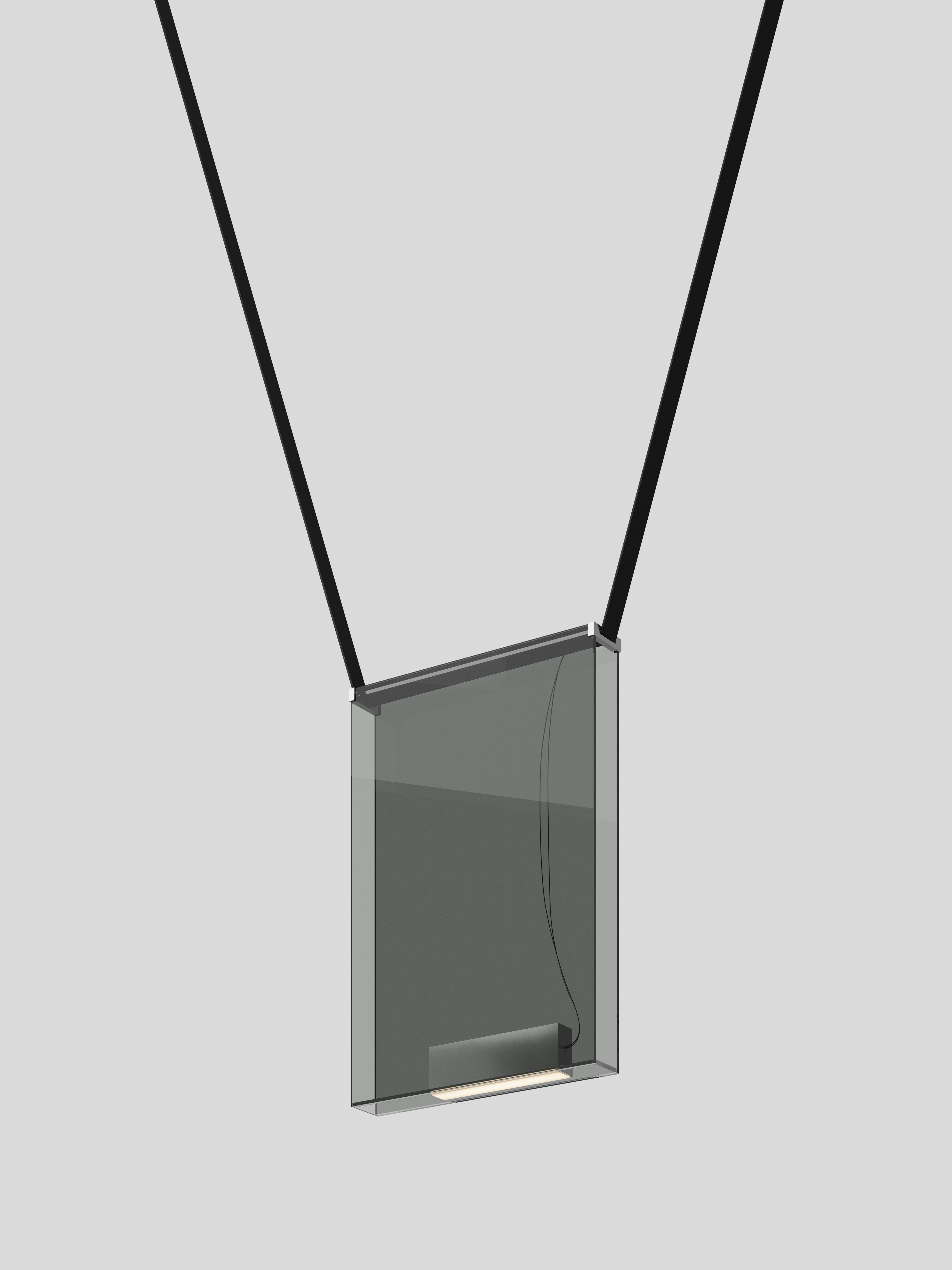

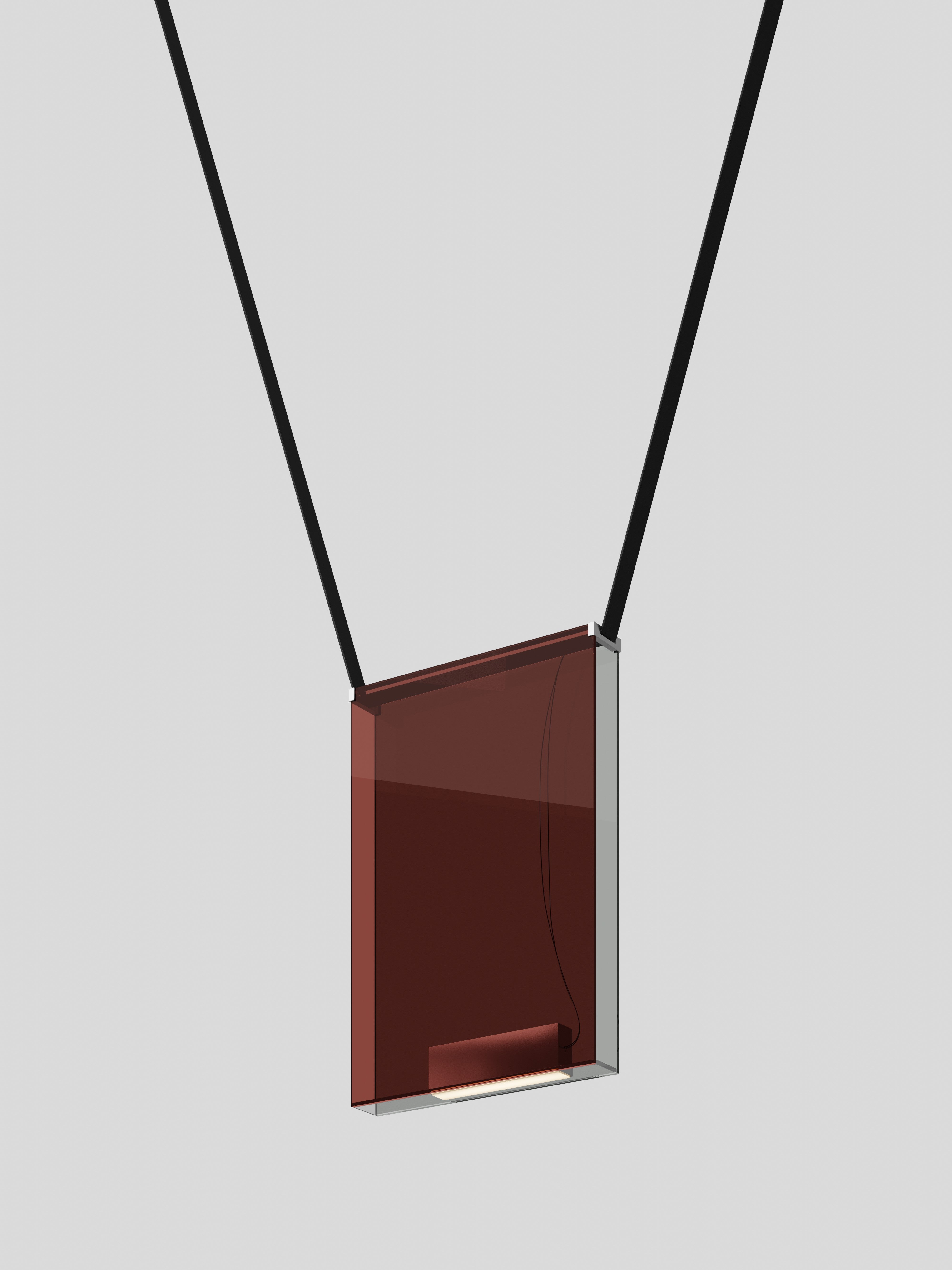

Sainte Atelier 03

• Product Sheet
• Installation Manual

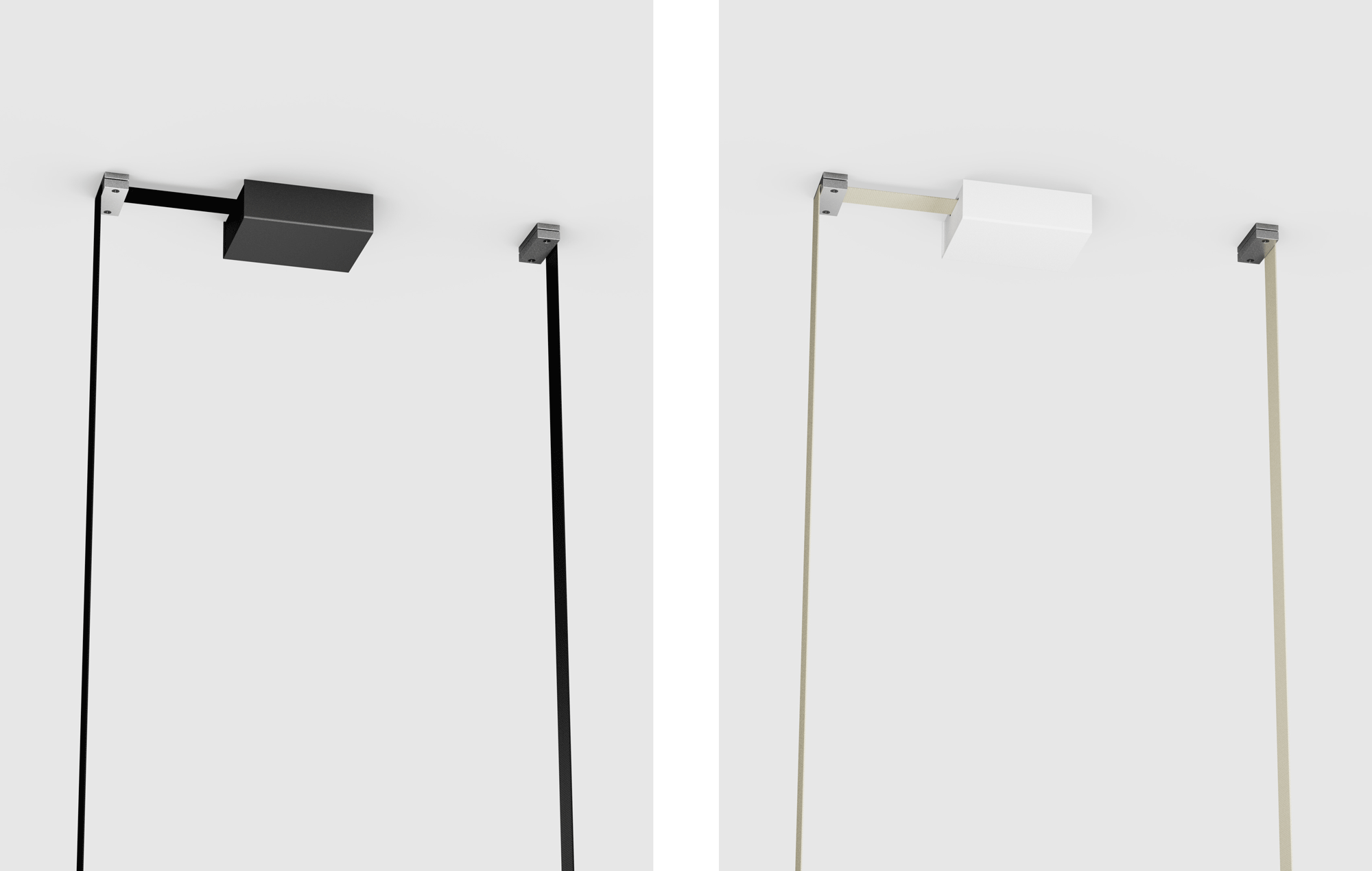

• Recessed Canopy Product Sheet
• Installation manual - Recessed canopy UL
• Installation manual - Recessed canopy CE
• 3D Files
• IES Files
• Colour temperature adjustment guide

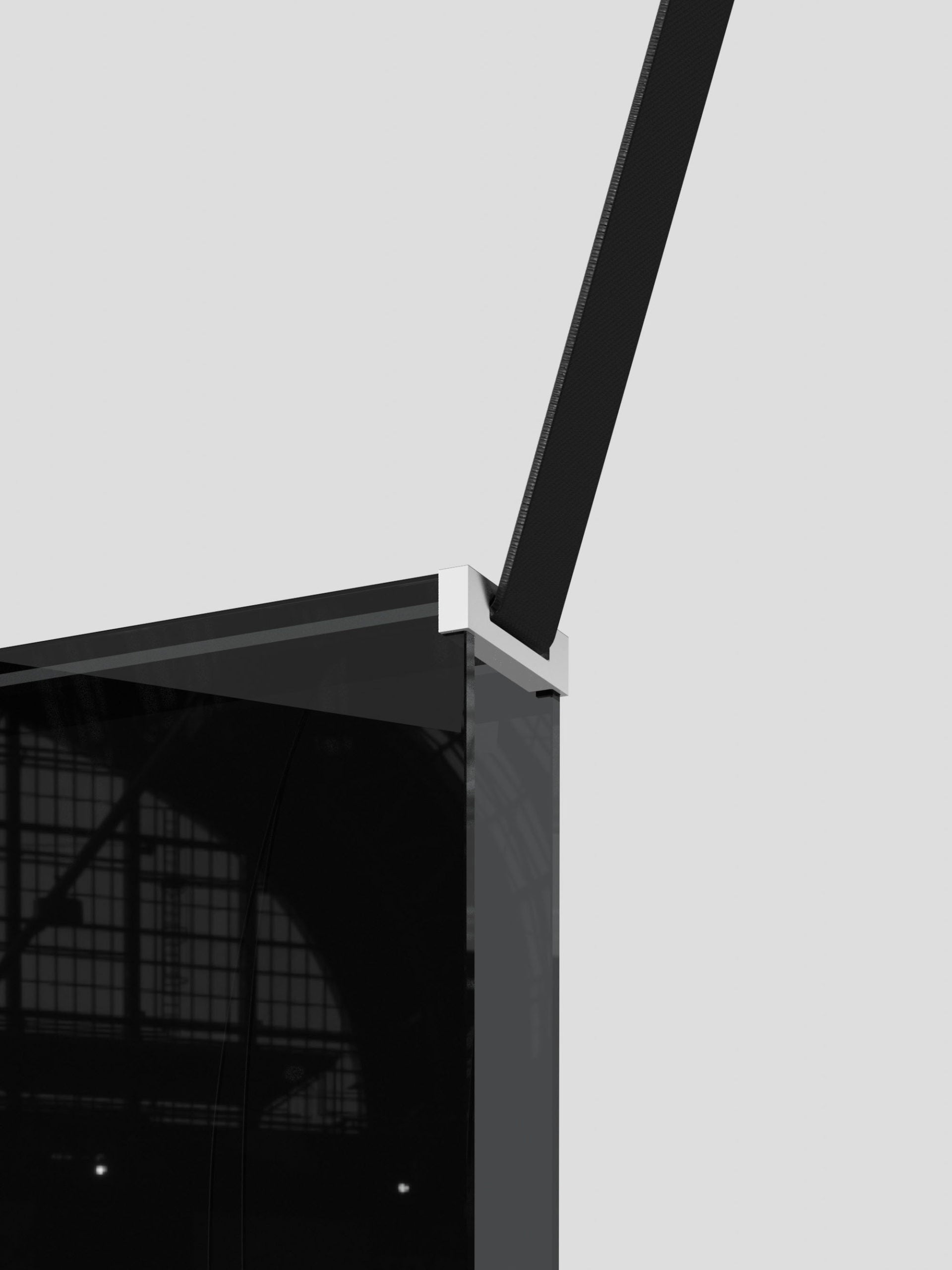

aluminum polished light block, ceiling and glass anchors
laminated glass body
nylon ribbon
PMMA frosted diffuser

Dimensions
Length: 15 in / 38 cm
Height: Variable, min. 28 in / 71 cm
Depth: 2.5 in / 6 cm

Luminaire total height
(ceiling to lowest point of luminaire).
(120 in / 305 cm ribbon provided)
Min - 28 in / 71 cm
Max - 142 in / 361 cm
*For any height outside these parameters, contact Lambert & Fils.

Ribbon Length
120 in / 305 cm on each side, ribbon width: 1.5 in / 3.8 cm

Weight
18.3 lb / 8.2 kg

Source
LED array, integrated

Power Consumption
7.9 W

Colour Temperature Options
3000K
2700K
2200K
Dim-to-warm 3000K to 2200K
Dim-to-warm 2700K to 2200K

Lumen Output
2700K - 359 lm

Colour Rendering Index
≥90 CRI

Colour Consistency
3 SDCM

Expected Lifetime
≥50,000 hours

Control Options
120-277V: On/Off, 0-10V or Phase dimming (120 V only)
220-240V: On/Off, Phase Dimming, DALI
Refer to our recommended list of dimmer models on the product sheet.

North America
16 weeks

International
20 weeks

You will receive an email with an estimated delivery date when your order is completed.

If you’ve ordered lamps with various lead times, note they will be shipped together according to the longest lead time. If you require a shorter lead time, please contact us at order@lambertetfils.com, specifying the required shipment date, and we will confirm whether it is possible. An additional rush fee may apply.

Luminaire height is adjustable on site.

For installation on slanted ceiling, contact Lambert et Fils.

Dimensions are approximate and may vary slightly
