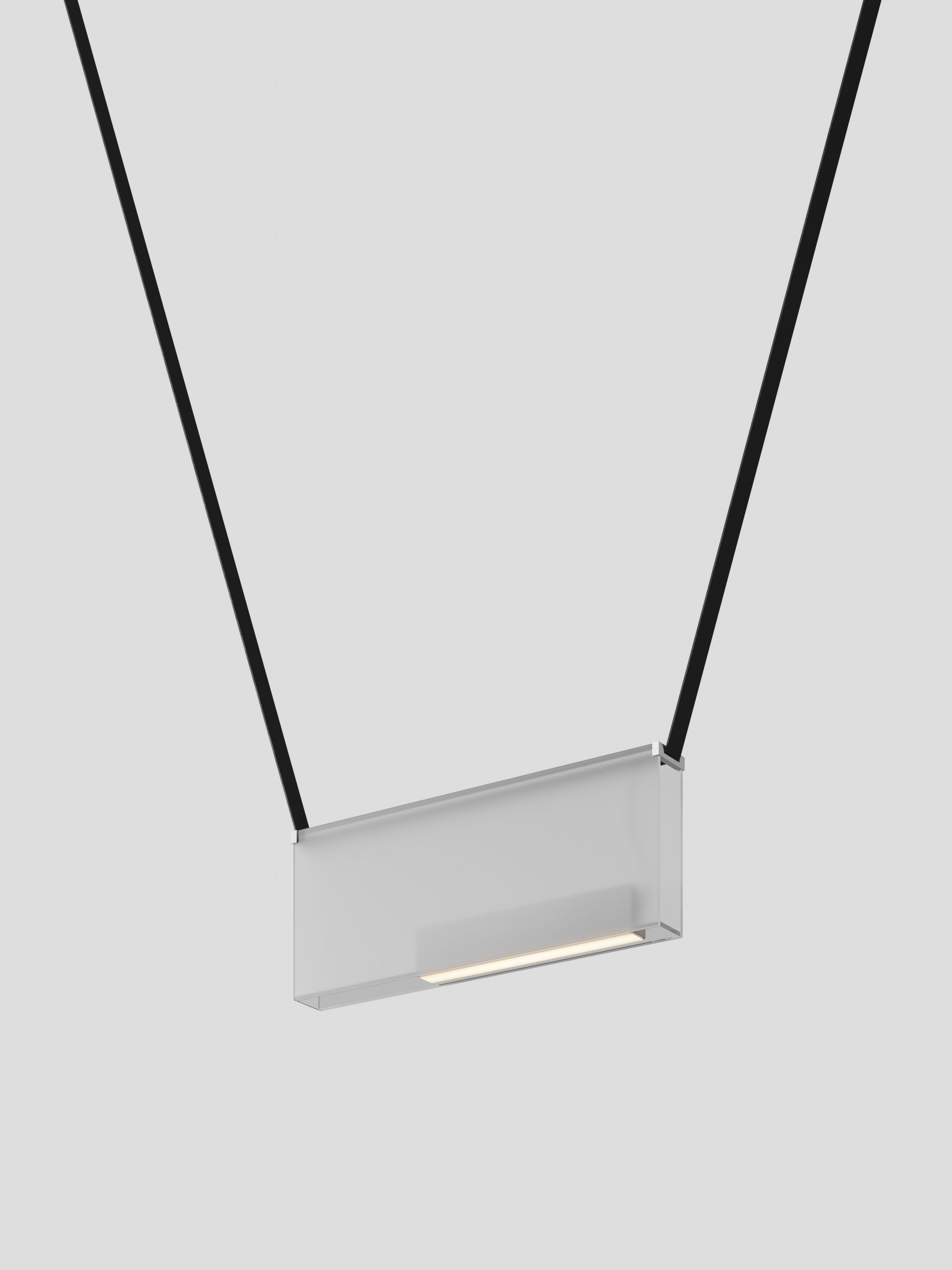

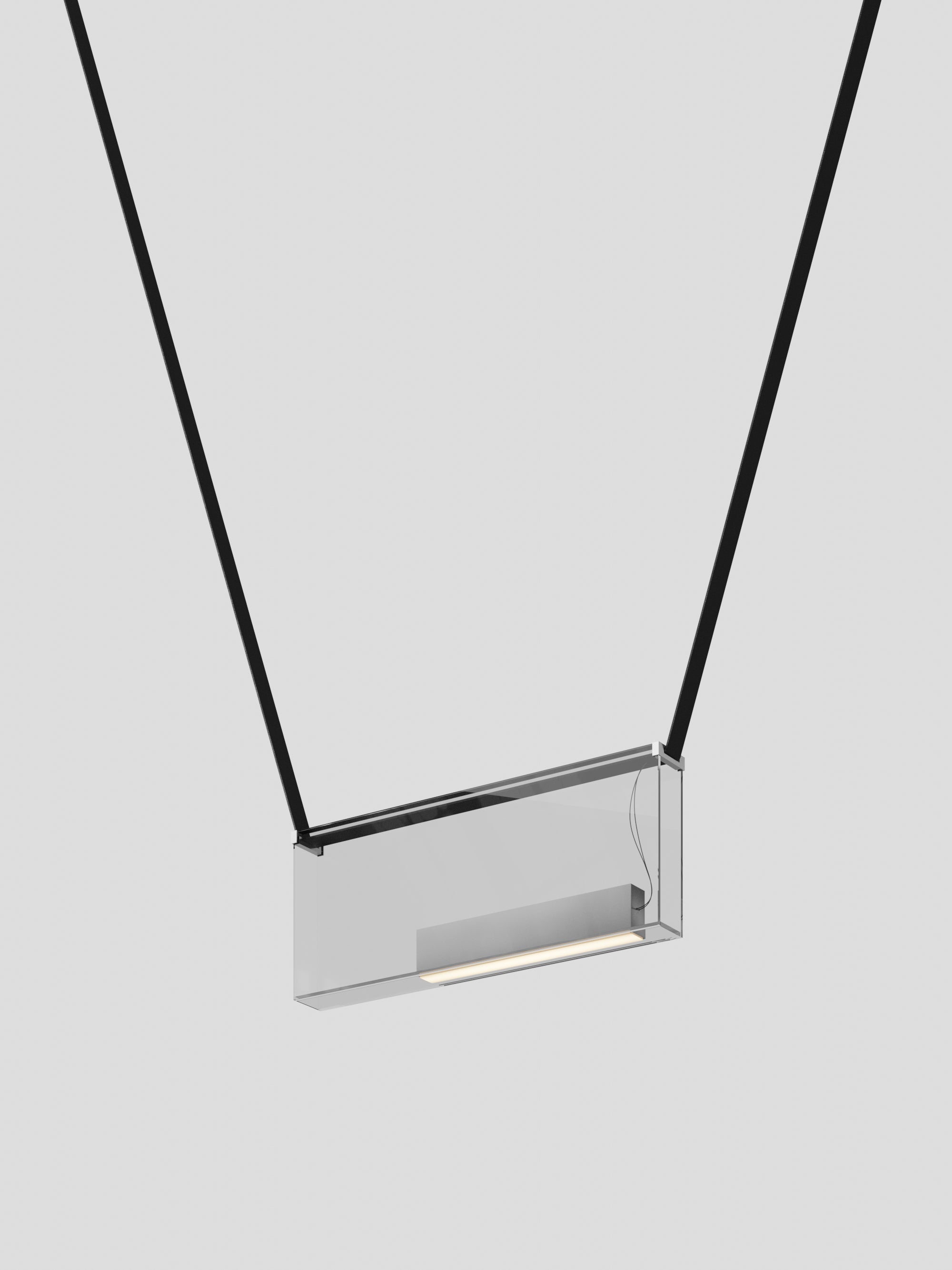

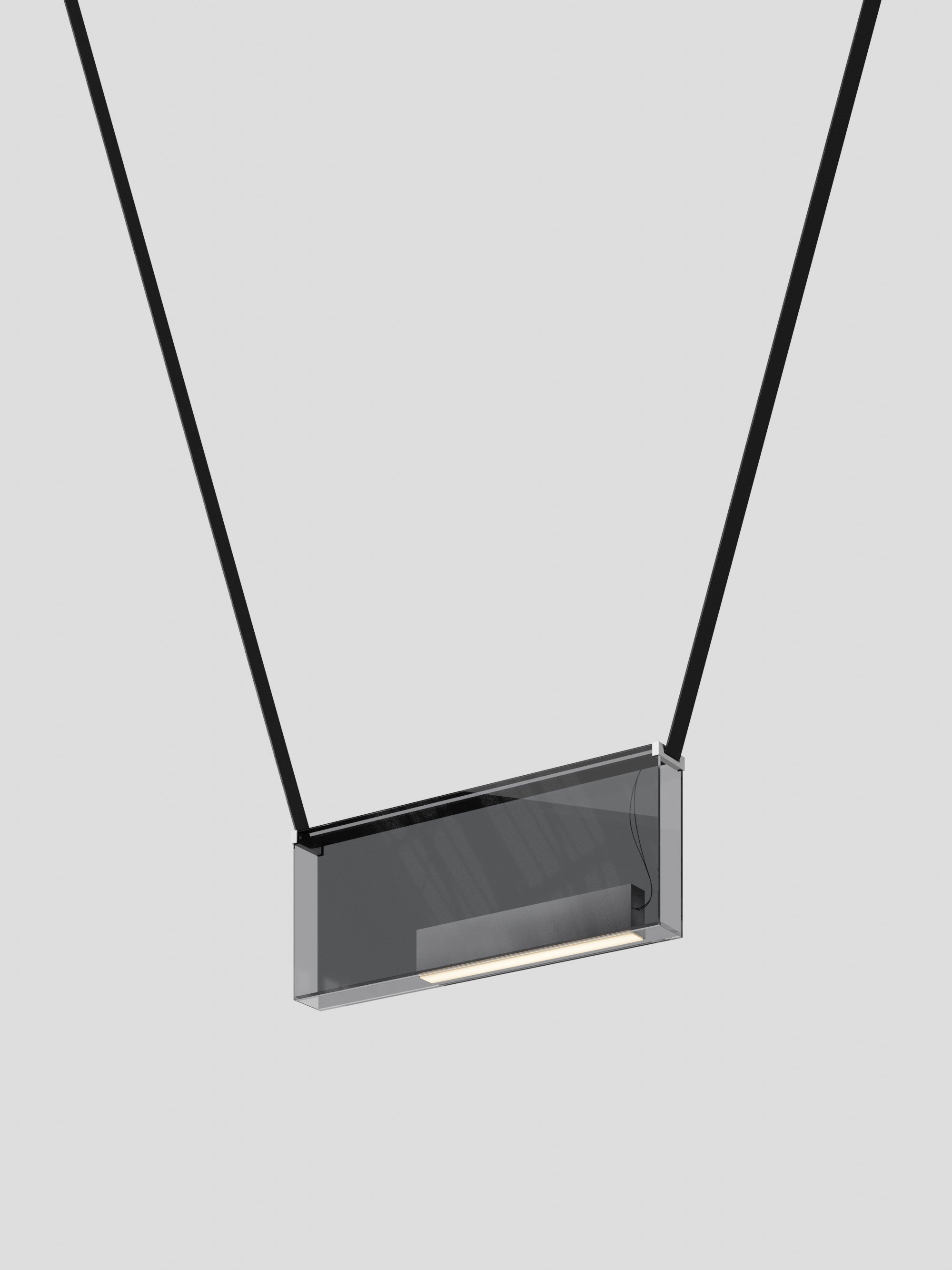

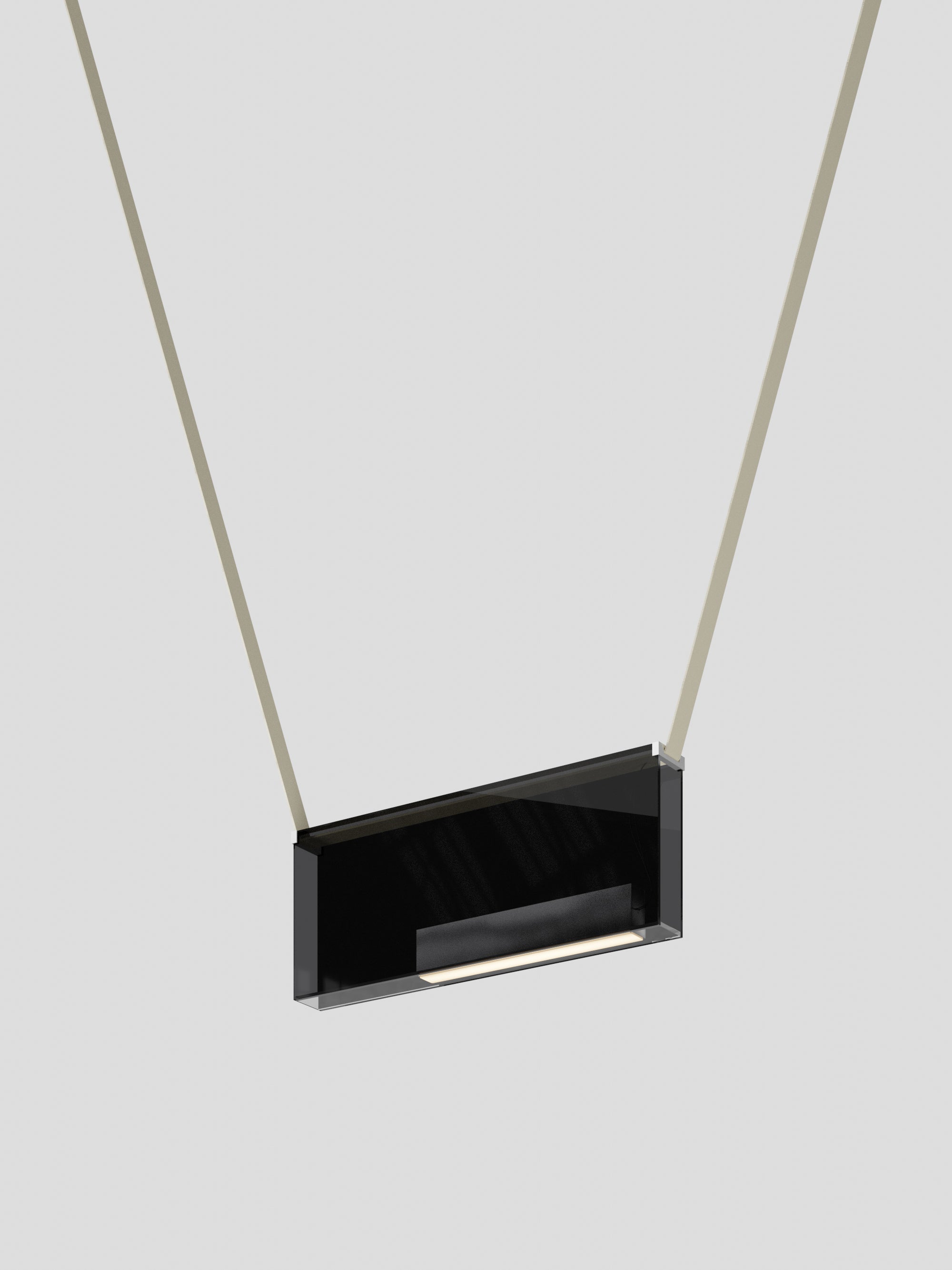

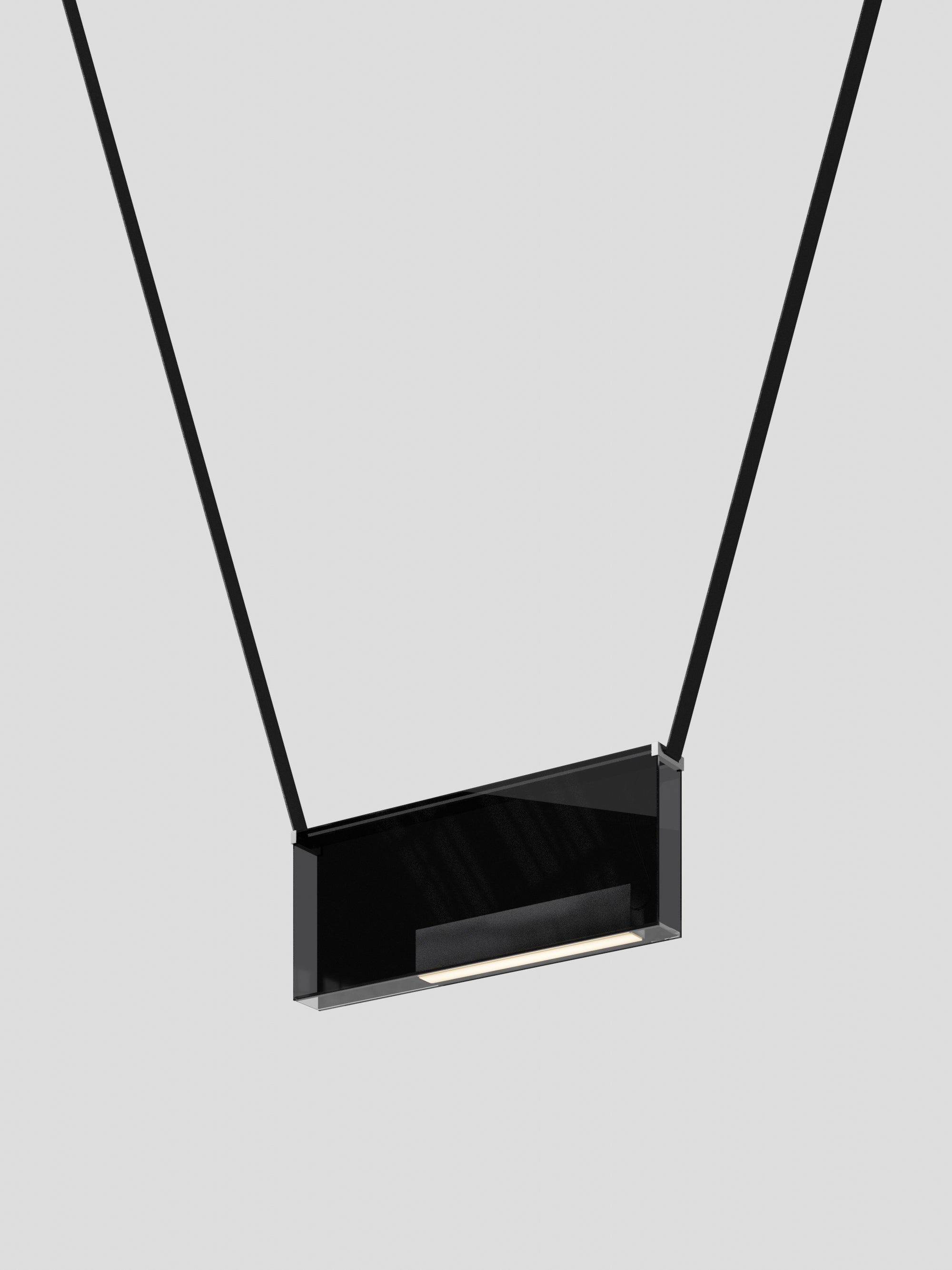

Sainte 25

• Product Sheet
• Installation Manual

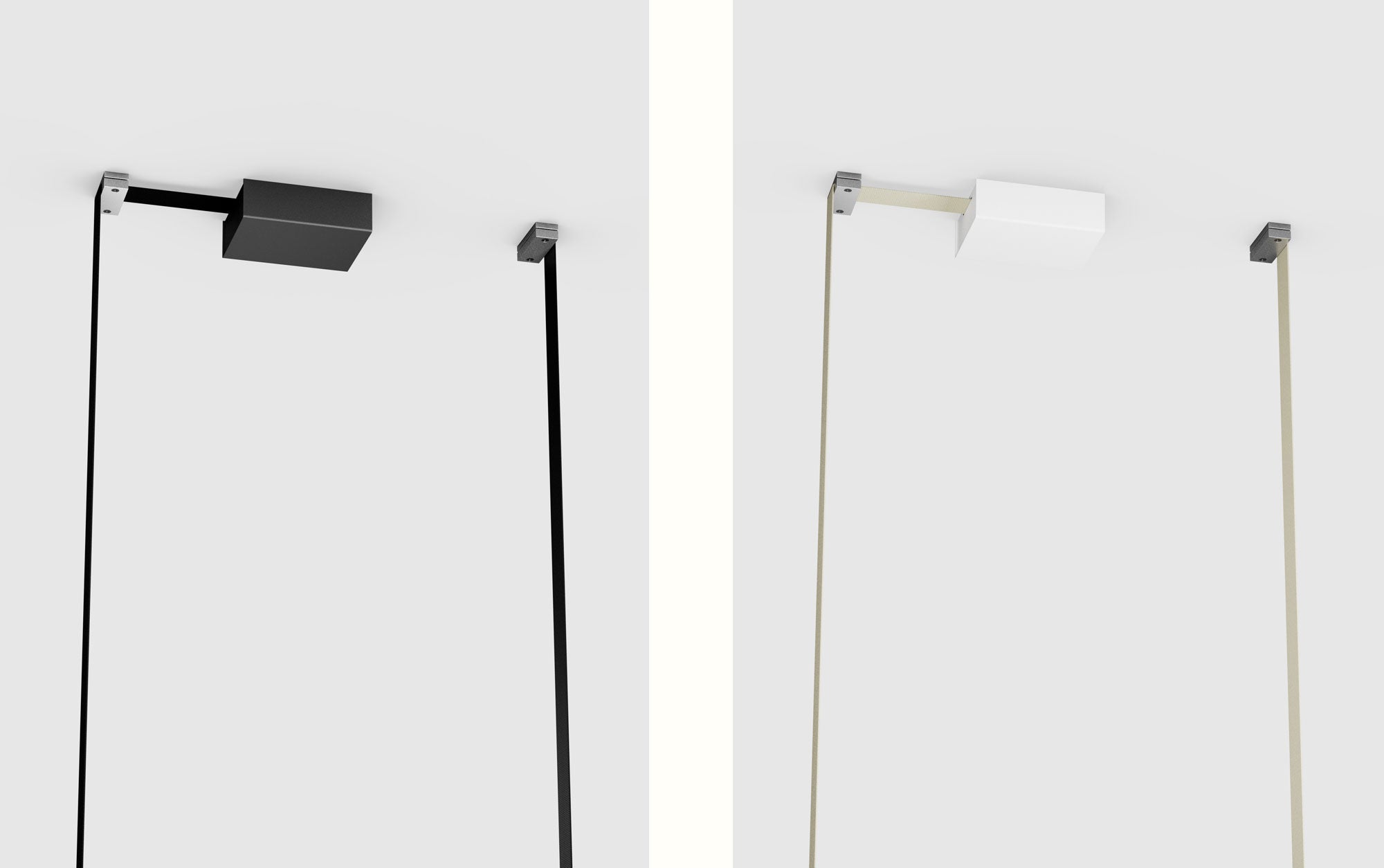

• Recessed Canopy Product Sheet
• Installation manual - Recessed canopy UL
• Installation manual - Recessed canopy CE
• 3D Files
• IES Files
• Colour temperature adjustment guide

aluminum polished light block, anchor system and
ceiling anchors
polyester laminated acrylic
nylon ribbon
PMMA frosted diffuser

Dimensions
Length: 22.5 in / 57 cm
Height: Variable, min. 15 in / 38 cm
Depth: 2.5 in / 6 cm

Luminaire total height
(ceiling to lowest point of luminaire).
(120 in / 305 cm ribbon provided)
Min - 15 in / 38 cm
Max - 129 in / 328 cm
*For any height outside these parameters, contact Lambert & Fils.

Ribbon Length
120 in / 305 cm on each side, ribbon width: 1.5 in / 3.8 cm

Weight
9.6 lb / 4.4 kg

SourceLED array, integrated

Power Consumption
11 W

Colour Temperature Options
3000K
2700K
2200K
Dim-to-warm 3000K to 2200K
Dim-to-warm 2700K to 2200K

Lumen Output
2700K - 499 lm

Colour Rendering Index
≥90 CRI

Colour Consistency
3 SDCM

Expected Lifetime
≥50,000 hours

Control Options
120-277V: On/Off, 0-10V or Phase dimming (120 V only)
220-240V: On/Off, Phase Dimming, DALI
Refer to our recommended list of dimmer models on the product sheet.

Luminaire height is adjustable on site.

For installation on slanted ceiling, contact Lambert et Fils.

Dimensions are approximate and may vary slightly
