Ipoli 09

• Product Sheet
• Installation Manual - Softwire (Portable)
• Installation Manual - Hardwire (Fixed)
• Installation Manual - Remote Driver (Fixed)
• IES Files - Touch Dimmer
• IES Files - Remote Driver

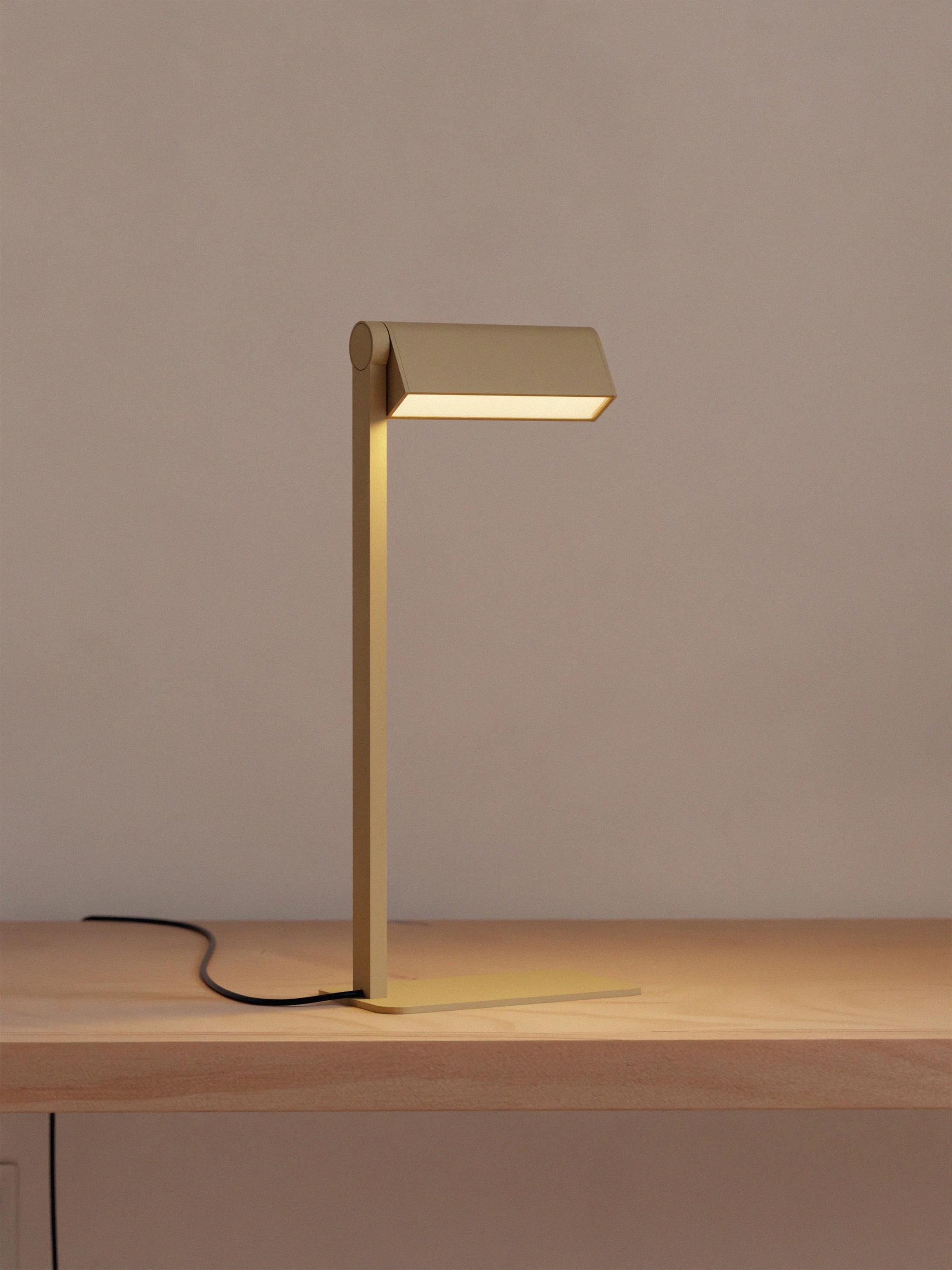

Tumbled or powder coated aluminum body, head
and base
Frosted opal acrylic lens
Vinyl cord

Dimensions
Length:
HW: 7.7 in / 19.6 cm
SW: 7.1 in / 18 cm
Height: 18 in / 45.7 cm
Depth:
HW: 3.5 in / 8.9 cm
SW: 4.5 in / 11.4 cm

Cord Length
HW: 96 in / 244 cm
SW: 70 in / 178 cm

Weight
HW: 1.9 lb / 0.9 kg
SW: 2.2 lb / 1 kg

Power Consumption
Touch dimmer: 8 W
Remote driver: max. 7 W

Colour Temperature Options
3000K
2700K
2200K
Dim-to-warm 3000K to 2200K
Dim-to-warm 2700K to 2200K

Lumen OutputTBD

Colour Rendering Index
≥90 CRI

Colour Consistency
3 SDCM

Expected Lifetime
≥50,000 hours

ControlTouch Dimmer
100-240V

Remote Driver
120-277V: On/Off, 0-10V, Phase dimming (120V only)
220-240V: On/Off, Phase Dimming, DALI

10 weeks

You will receive an email with an estimated delivery date when your order is completed.

If you’ve ordered lamps with various lead times, note they will be shipped together according to the longest lead time. If you require a shorter lead time, please contact us at order@lambertetfils.com, specifying the required shipment date, and we will confirm whether it is possible. An additional rush fee may apply.

Dimensions are approximate and may vary slightly.

For hardwire installation, the surface thickness should be between 0.5 / 1.27 cm and 1.5 / 3.8 cm.

Remote Driver: Touch dimmer not available. Driver provided. Driver housing not included for UL.
