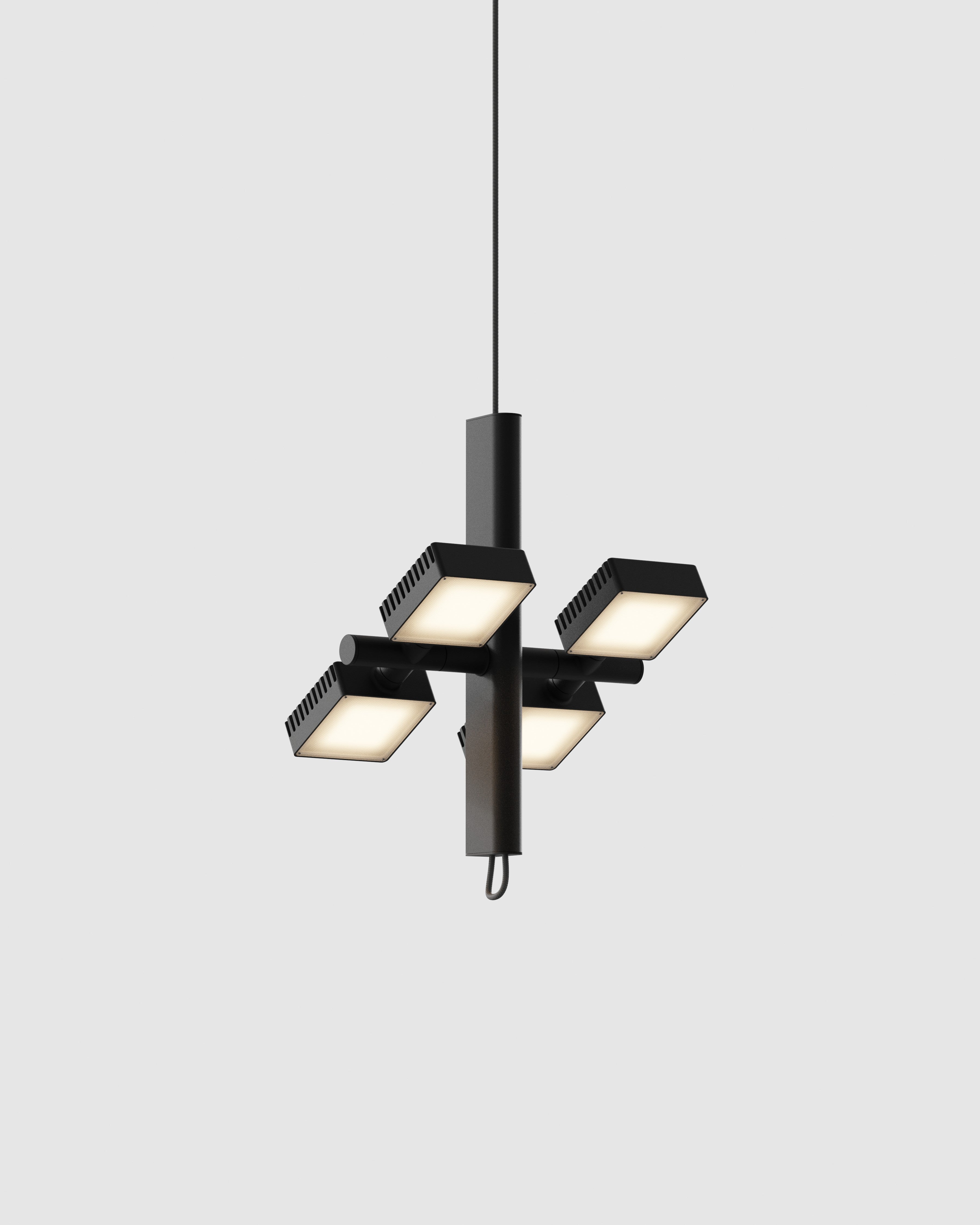

Dorval 01

• Product Sheet
• Installation Manual
• 3D Files
• IES files
• Colour temperature adjustment guide

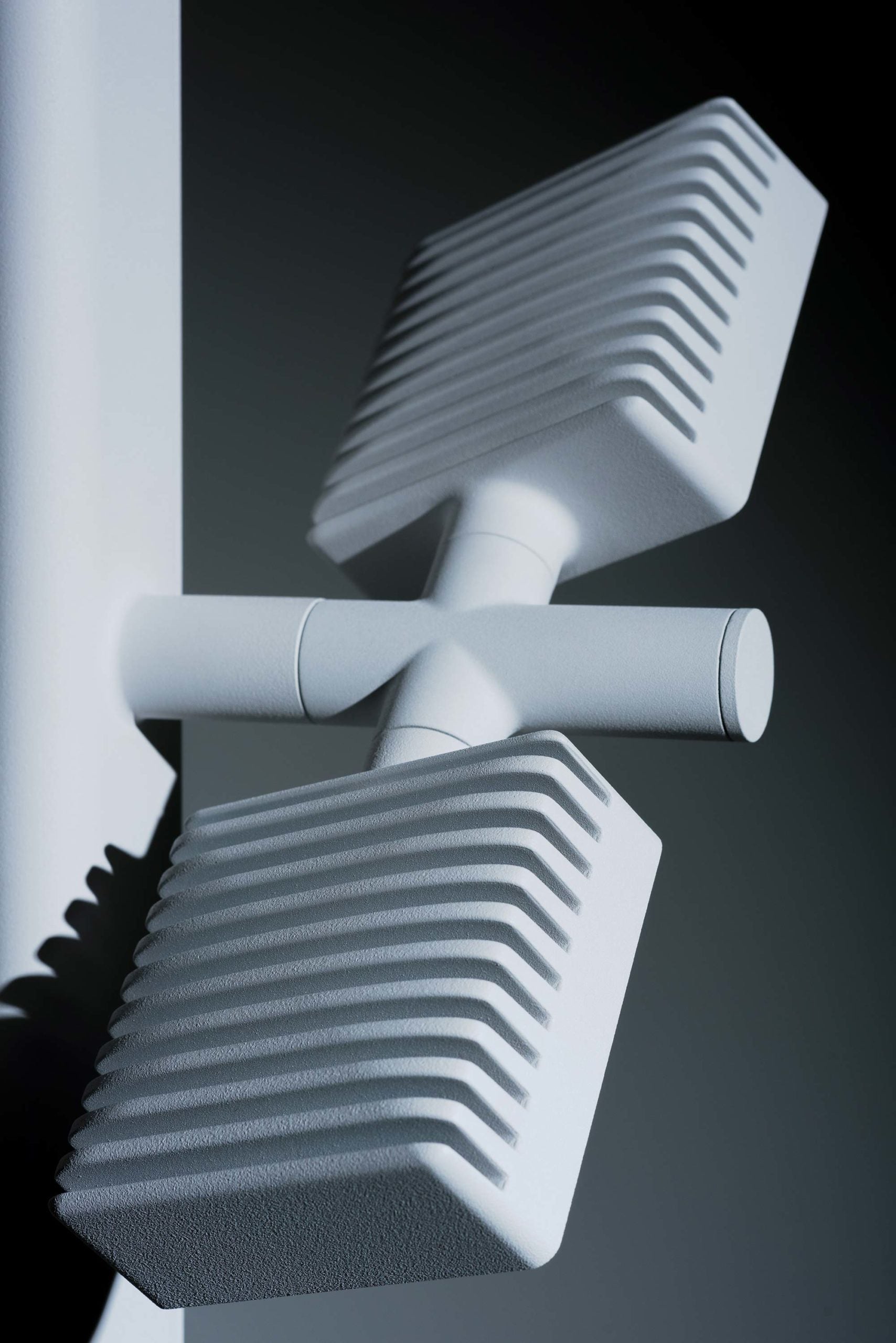

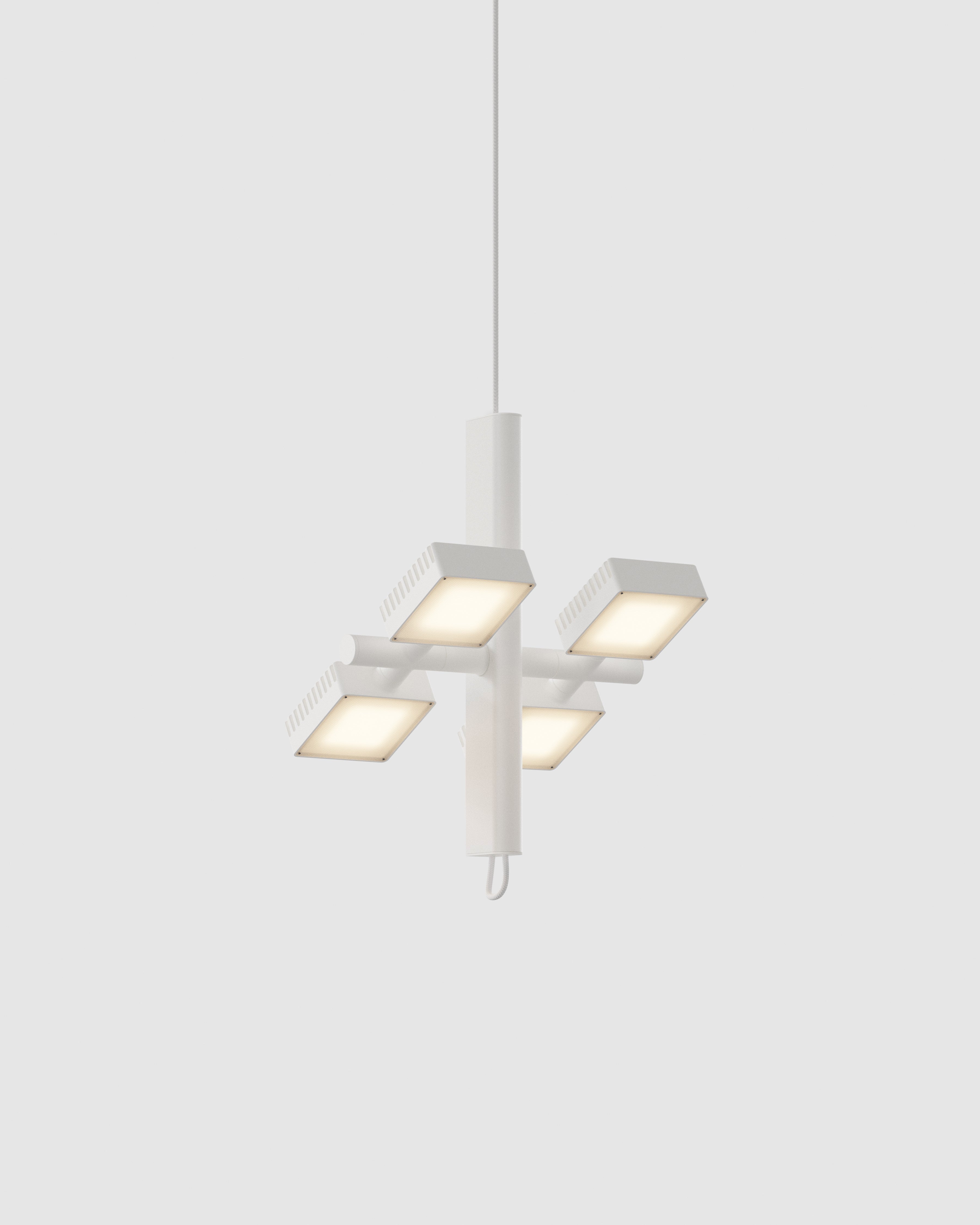

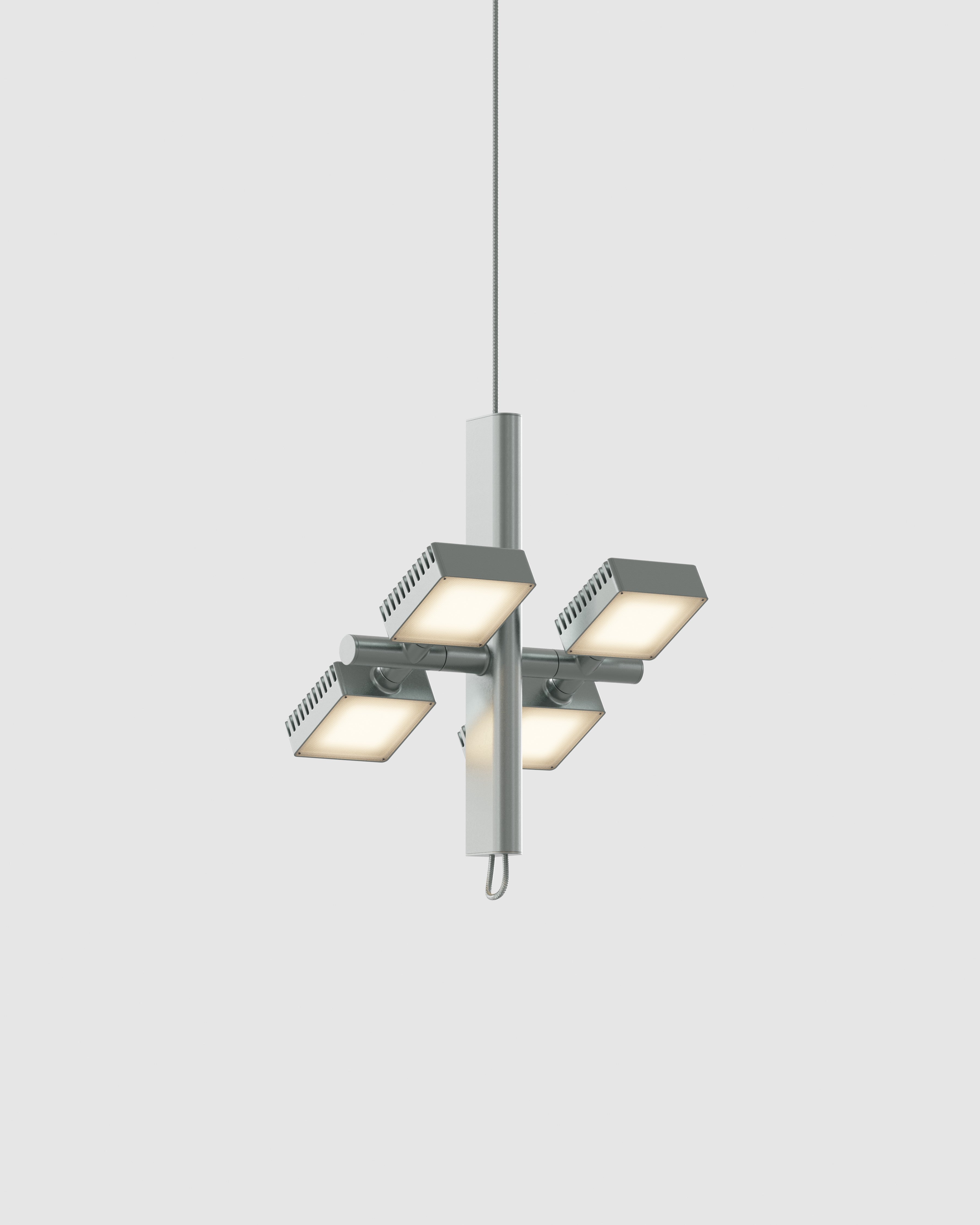

Powder coated or polished aluminum body and heads
Clear prismatic PMMA lens
Polyester cord
Steel cord (aluminium finish only)

Dimensions
Length: 14 in / 36 cm
Height: Variable, min. 26 in / 66 cm
Depth: 2.5 in / 6 cm

Luminaire total height (ceiling to lowest point of luminaire).
Min. 26 in / 66 cm
Max. 126 in / 320 cm
For any height outside these parameters, contact Lambert & Fils.

Cord Length
108 in / 275 cm provided

Weight
11.5 lb / 5.2 kg min.

Source
LED array, integrated

Power Consumption
36 W

Colour Temperature Options
3000K
2700K
Dim-to-warm 3000K to 2200K
Dim-to-warm 2700K to 2200K

Lumen Output
3000K - 3106 lm
2700K - 2888 lm

Colour Rendering Index
≥90 CRI

Colour Consistency
3 SDCM

Expected Lifetime
≥50,000 hours

Control Options
120-277V: On/Off, 0-10V, Phase dimming (120 V only)
220-240V: On/Off or trailing edge dimming only
Refer to our recommended list of dimmer models.

9 weeks

You will receive an email with an estimated delivery date when your order is completed.

If you’ve ordered lamps with various lead times, note they will be shipped together according to the longest lead time. If you require a shorter lead time, please contact us at order@lambertetfils.com, specifying the required shipment date, and we will confirm whether it is possible. An additional rush fee may apply.

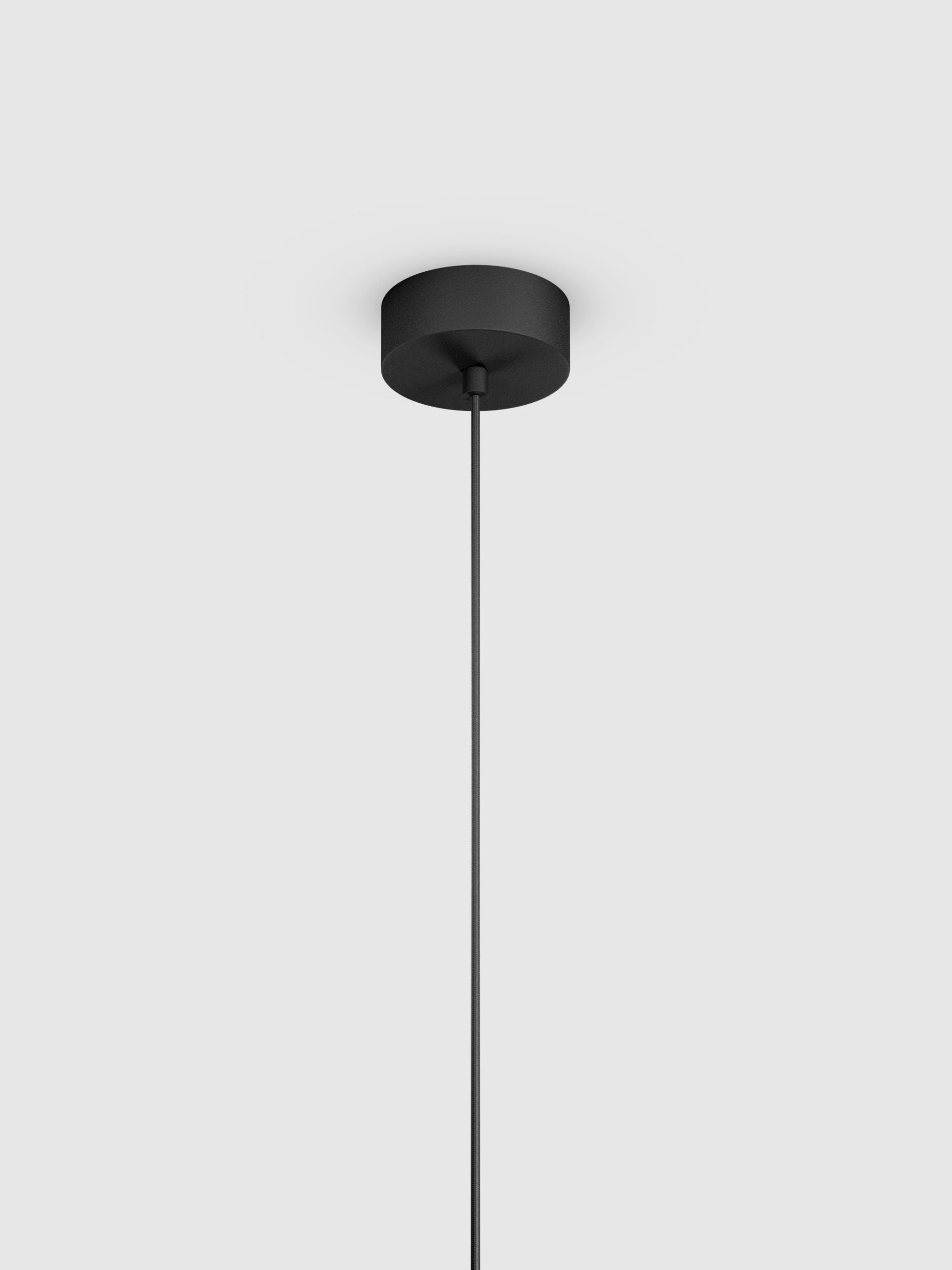

The canopy can be offset from composition.

Luminaire height is adjustable on site.

Not available for slanted ceiling.

Dimensions are approximate and may vary slightly.
